Humanscale 6G Big Board Keyboard Tray

Bring your keyboard and mouse closer with the Humanscale 6G Big Board Articulating Keyboard System. Its spacious platform, one-handed height adjustment and dial-controlled negative tilt help create a more comfortable typing position while keeping the desktop clear.

Features

• Spacious 27″w platform holds a keyboard and mouse together on one level

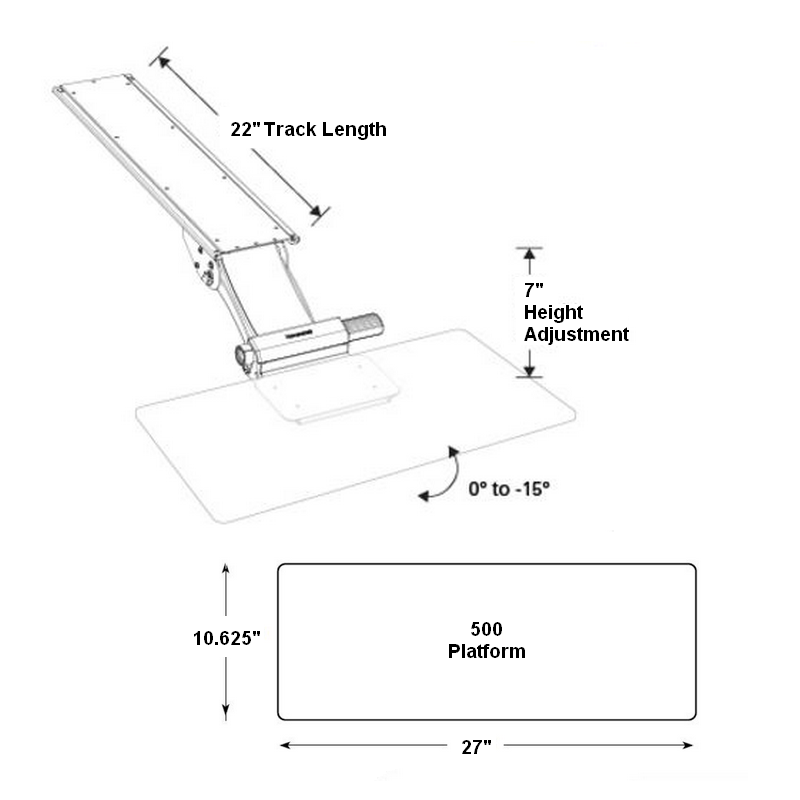

• One-handed height adjustment without locks or levers (7″ Range, 1.75” above track to 5.25” below track)
• Dial-a-Tilt control makes keyboard angle changes quick and intuitive
• Negative tilt supports a more neutral hand and wrist position
• Ultra-thin platform helps preserve knee clearance

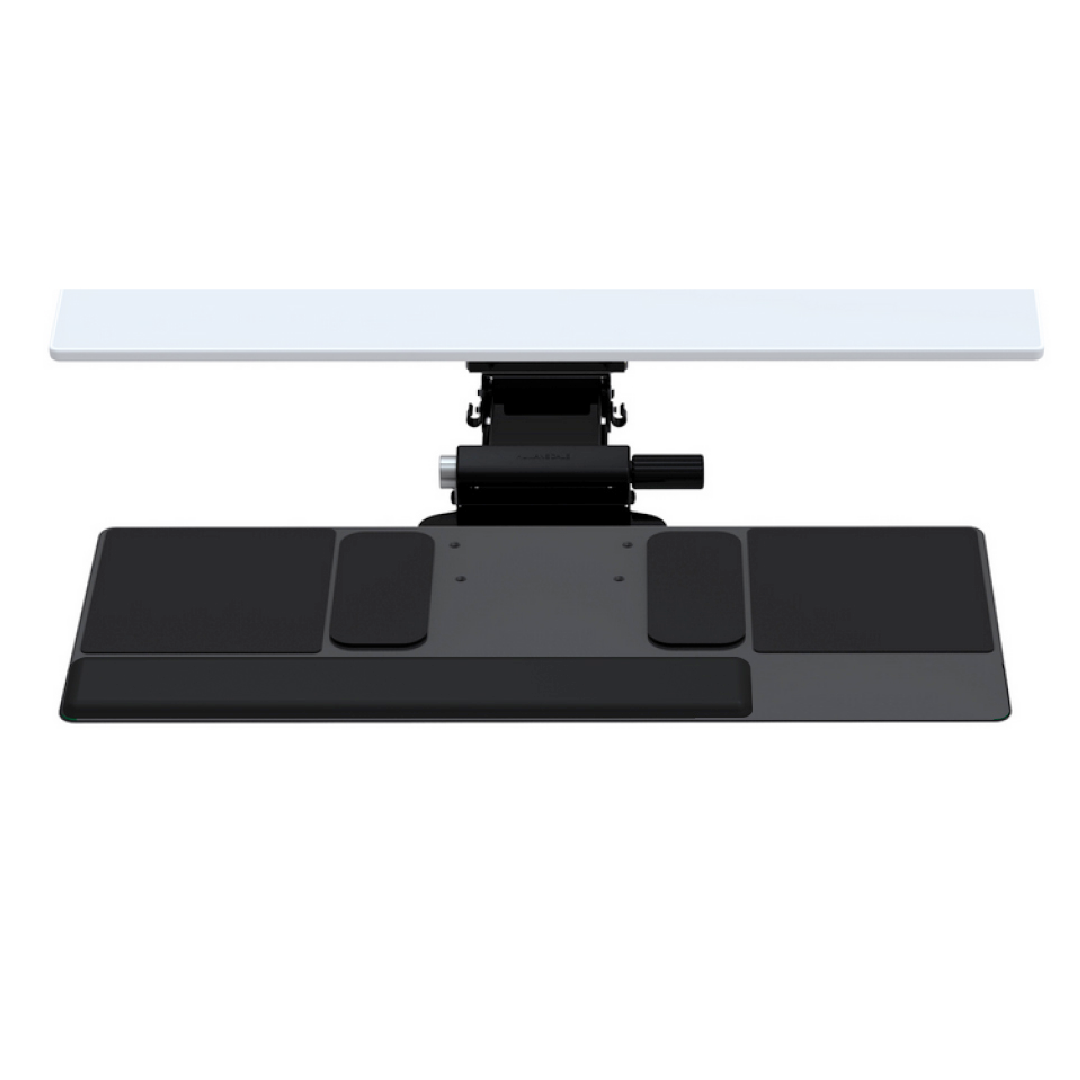

• Palm support can be positioned to suit different keyboard and mouse arrangements
• Strong, stable articulating arm
• Slides beneath the desk when not in use

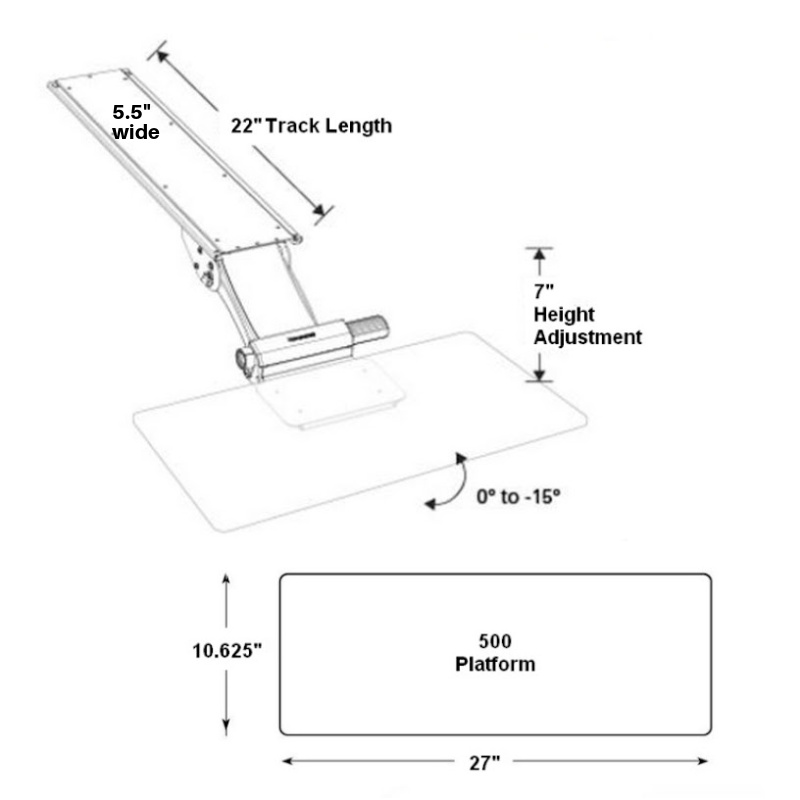

• 22″ Deep Track (5.5″ Wide)
• Suitable for right- or left-handed mouse use
• Designed for fixed-height desks and permanent workstations

Are you installing this on a Standing Desk with under-surface rails?

You may need to also purchase drop-down spacers

Tight surface depth? We also have a “Short 11″ Track” version available here

Bring the Keyboard and Mouse to You

A fixed desk may place the keyboard too high or too far away, causing you to reach forward or raise your shoulders while working. The Humanscale 6G lets you position the keyboard and mouse independently from the desk surface.

Moving the keyboard closer can help you sit back against your chair while keeping your elbows nearer your sides. The large platform provides room for both the keyboard and mouse without forcing them onto separate levels.

Simple One-Handed Adjustment

The Humanscale 6G mechanism raises and lowers with a natural one-handed motion. There are no locking levers to loosen or tighten each time you change position.

Once the tray is at a comfortable height, the Dial-a-Tilt control lets you change the keyboard angle. This makes it easier to adjust the system throughout the day or share the workstation with another user.

Negative Tilt for Comfortable Typing

The 6G platform adjusts from a level position into a negative tilt, with the front edge positioned slightly higher than the back. This can help keep the hands and wrists in a more neutral position while typing.

The platform does not tilt upward into a positive angle, which helps avoid forcing the wrists back toward the forearms.

Room for Keyboard and Mouse

The Big Board platform is designed for users who want generous space for a keyboard and mouse on one continuous surface. The mouse can be placed on either side, making it practical for right-handed users, left-handed users and shared workstations.

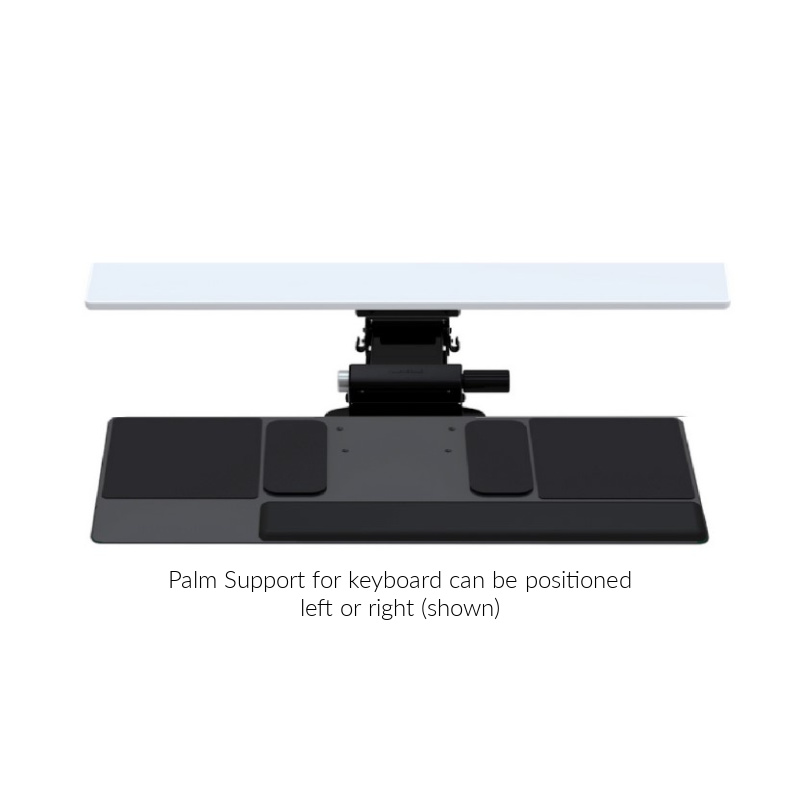

The palm support can also be positioned to suit different keyboard and mouse layouts.

Stores Beneath the Worksurface

When the keyboard is not needed, the tray slides beneath the desk along its mounting track. This clears the desktop and moves the platform out of the way.

Before ordering, check the underside of the desk carefully. Drawers, support rails, control boxes, crossbars and shallow worksurfaces may interfere with the track or prevent the tray from storing fully beneath the desk.

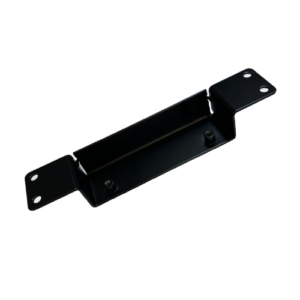

Some height-adjustable desks may require drop-down spacers so the track can clear under-surface rails or other components.

Frequently Asked Questions

What is an articulating keyboard system?
An articulating keyboard system mounts beneath a desk and lets the keyboard platform move up, down, forward, backward and through different angles. This allows the keyboard position to be adjusted separately from the desk height.

Can the Humanscale 6G Big Board hold both a keyboard and mouse?
Yes. The larger platform is designed to hold the keyboard and mouse together on one continuous surface.

Can it be used by right- and left-handed people?
Yes. The mouse can be positioned on either side of the keyboard, making the platform useful for right-handed, left-handed and shared workstations.

Will the Humanscale 6G fit every desk?
No. The desk needs a suitable flat mounting area beneath the worksurface and enough clear space for the track, mechanism and platform. Drawers, rails, crossbars and control boxes may interfere.

Does the keyboard tray require installation?
Yes. The track must be securely mounted beneath the desk. The desk construction and available mounting area should be checked before installation.

Can the tray be stored beneath the desk?
Yes. The platform slides along the track and stores beneath the worksurface when it is not being used, provided there is sufficient clearance.

Can it be installed on a standing desk?
It may be installed on some height-adjustable desks, but under-surface rails or frame components can interfere. Drop-down spacers may be required, and the desk should be checked before ordering.

A keyboard system is at the heart of an ergonomic workstation. As reach and vision drive posture, an articulating keyboard system allows the user to sit in a healthy posture. As with all Humanscale products, the 6G Keyboard System adjusts to the user and their task, not the other way around.
